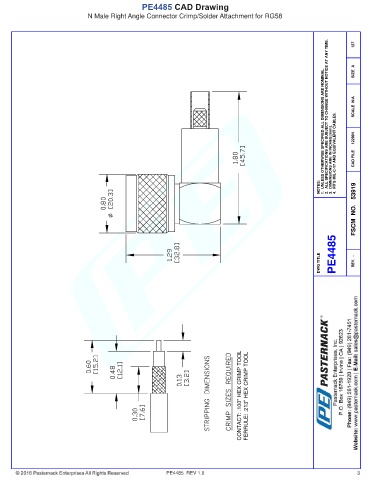

PE4485 CAD Drawing
N Male Right Angle Connector Crimp/Solder Attachment for RG58
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 122904 CAD FILE
NOTES:
FSCM NO. 53919
DWG TITLE PE4485 REV. -
CONTACT: .100" HEX CRIMP TOOL FERRULE: .213" HEX CRIMP TOOL
PE4485 REV 1.0 3
