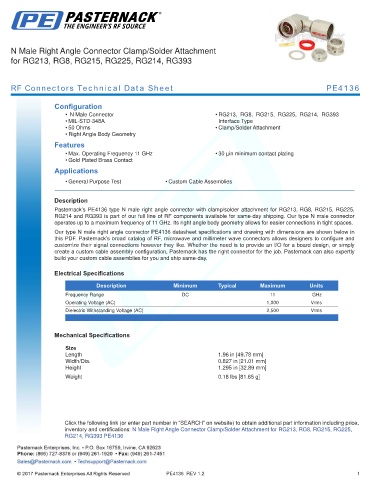

N Male Right Angle Connector Clamp/Solder Attachment
for RG213, RG8, RG215, RG225, RG214, RG393

RF Connectors Technical Data Sheet PE4136

Configuration
• N Male Connector • RG213, RG8, RG215, RG225, RG214, RG393
• MIL-STD-348A Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 11 GHz • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4136 type N male right angle connector with clamp/solder attachment for RG213, RG8, RG215, RG225,
RG214 and RG393 is part of our full line of RF components available for same-day shipping. Our type N male connector
operates up to a maximum frequency of 11 GHz. Its right angle body geometry allows for easier connections in tight spaces.
Our type N male right angle connector PE4136 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
Operating Voltage (AC) 1,000 Vrms
Dielectric Withstanding Voltage (AC) 2,500 Vrms
.

Mechanical Specifications

Size
Length 1.96 in [49.78 mm]
Width/Dia. 0.827 in [21.01 mm]
Height 1.295 in [32.89 mm]
.
Weight 0.18 lbs [81.65 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle Connector Clamp/Solder Attachment for RG213, RG8, RG215, RG225,
RG214, RG393 PE4136
