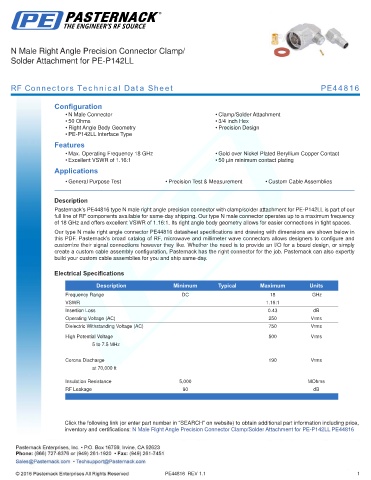

N Male Right Angle Precision Connector Clamp/
Solder Attachment for PE-P142LL

RF Connectors Technical Data Sheet PE44816

Configuration
• N Male Connector • Clamp/Solder Attachment
• 50 Ohms • 3/4 inch Hex
• Right Angle Body Geometry • Precision Design
• PE-P142LL Interface Type
Features
• Max. Operating Frequency 18 GHz • Gold over Nickel Plated Beryllium Copper Contact
• Excellent VSWR of 1.16:1 • 50 µin minimum contact plating
Applications

• General Purpose Test • Precision Test & Measurement • Custom Cable Assemblies
.
Description
Pasternack’s PE44816 type N male right angle precision connector with clamp/solder attachment for PE-P142LL is part of our
full line of RF components available for same-day shipping. Our type N male connector operates up to a maximum frequency
of 18 GHz and offers excellent VSWR of 1.16:1. Its right angle body geometry allows for easier connections in tight spaces.
Our type N male right angle connector PE44816 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.16:1
Insertion Loss 0.43 dB
Operating Voltage (AC) 250 Vrms
Dielectric Withstanding Voltage (AC) 750 Vrms
High Potential Voltage 500 Vrms
5 to 7.5 MHz

Corona Discharge 190 Vrms
at 70,000 ft

Insulation Resistance 5,000 MOhms
RF Leakage 90 dB
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle Precision Connector Clamp/Solder Attachment for PE-P142LL PE44816
