N Male Right Angle Precision Connector Solder Attachment
For PE-SR405AL, PE-SR405FL, PE-SR405FLJ, RG405

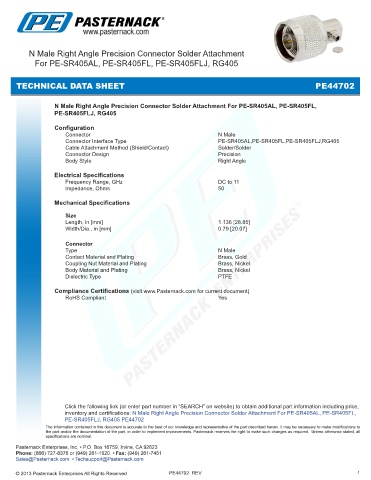

TECHNICAL DATA SHEET PE44702

N Male Right Angle Precision Connector Solder Attachment For PE-SR405AL, PE-SR405FL,
PE-SR405FLJ, RG405

Configuration
Connector N Male
Connector Interface Type PE-SR405AL,PE-SR405FL,PE-SR405FLJ,RG405
Cable Attachment Method (Shield/Contact) Solder/Solder
Connector Design Precision
Body Style Right Angle

Electrical Specifications
Frequency Range, GHz DC to 11
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.136 [28.85]
Width/Dia., in [mm] 0.79 [20.07]
.
Connector
Type N Male
Contact Material and Plating Brass, Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle Precision Connector Solder Attachment For PE-SR405AL, PE-SR405FL,
PE-SR405FLJ, RG405 PE44702

PE44702 REV 1
