N Male Right Angle Connector Clamp/Solder Attachment
for PE-SR401AL, PE-SR401FL, RG401

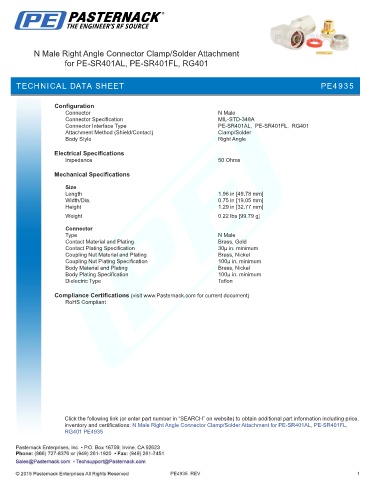

TECHNICAL DATA SHEET PE4935

Configuration
Connector N Male
Connector Specification MIL-STD-348A
Connector Interface Type PE-SR401AL, PE-SR401FL, RG401
Attachment Method (Shield/Contact) Clamp/Solder
Body Style Right Angle

Electrical Specifications
Impedance 50 Ohms

Mechanical Specifications

Size
Length 1.96 in [49.78 mm]
Width/Dia. 0.75 in [19.05 mm]
Height 1.29 in [32.77 mm]
.
Weight 0.22 lbs [99.79 g]
Connector
Type N Male
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle Connector Clamp/Solder Attachment for PE-SR401AL, PE-SR401FL,
RG401 PE4935

PE4935 REV 1
