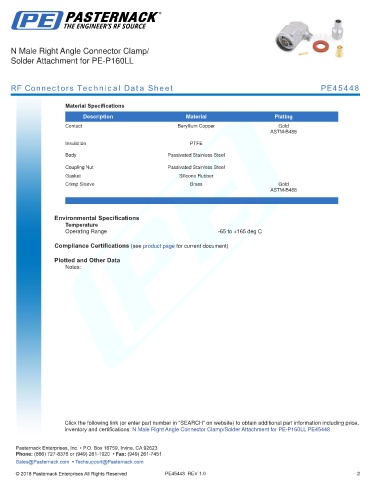

N Male Right Angle Connector Clamp/
Solder Attachment for PE-P160LL

RF Connectors Technical Data Sheet PE45448

Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
ASTM-B488

Insulation PTFE
Body Passivated Stainless Steel

Coupling Nut Passivated Stainless Steel
Gasket Silicone Rubber
Crimp Sleeve Brass Gold
ASTM-B488

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle Connector Clamp/Solder Attachment for PE-P160LL PE45448 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45448 REV 1.0 2
