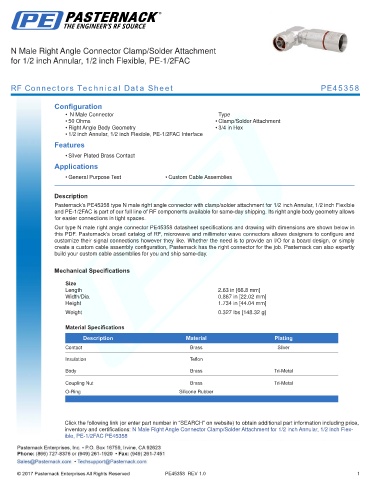

N Male Right Angle Connector Clamp/Solder Attachment
for 1/2 inch Annular, 1/2 inch Flexible, PE-1/2FAC

RF Connectors Technical Data Sheet PE45358

Configuration
• N Male Connector Type
• 50 Ohms • Clamp/Solder Attachment
• Right Angle Body Geometry • 3/4 in Hex
• 1/2 inch Annular, 1/2 inch Flexible, PE-1/2FAC Interface
Features
• Silver Plated Brass Contact
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE45358 type N male right angle connector with clamp/solder attachment for 1/2 inch Annular, 1/2 inch Flexible
and PE-1/2FAC is part of our full line of RF components available for same-day shipping. Its right angle body geometry allows
for easier connections in tight spaces.
Our type N male right angle connector PE45358 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 2.63 in [66.8 mm]
Width/Dia. 0.867 in [22.02 mm]
Height 1.734 in [44.04 mm]
.
Weight 0.327 lbs [148.32 g]
.
Material Specifications
Description Material Plating
Contact Brass Silver
Insulation Teflon

Body Brass Tri-Metal
Coupling Nut Brass Tri-Metal
O-Ring Silicone Rubber
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle Connector Clamp/Solder Attachment for 1/2 inch Annular, 1/2 inch Flex-
ible, PE-1/2FAC PE45358

PE45358 REV 1.0 1
