N Male Right Angle Connector Clamp/
Solder Attachment for PE-P160LL

RF Connectors Technical Data Sheet PE45448

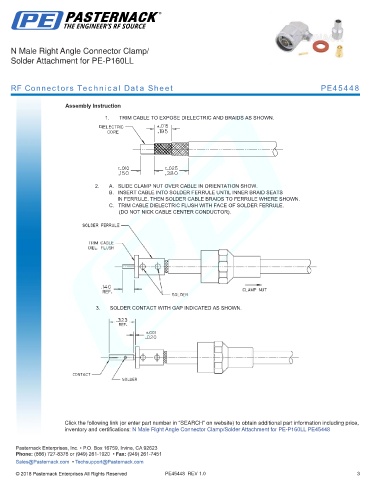

Assembly Instruction

1. TRIM CABLE TO EXPOSE DIELECTRIC AND BRAIDS AS SHOWN.

2. A. SLIDE CLAMP NUT OVER CABLE IN ORIENTATION SHOW.
B. INSERT CABLE INTO SOLDER FERRULE UNTIL INNER BRAID SEATS
IN FERRULE. THEN SOLDER CABLE BRAIDS TO FERRULE WHERE SHOWN.
C. TRIM CABLE DIELECTRIC FLUSH WITH FACE OF SOLDER FERRULE.
(DO NOT NICK CABLE CENTER CONDUCTOR).

3. SOLDER CONTACT WITH GAP INDICATED AS SHOWN.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle Connector Clamp/Solder Attachment for PE-P160LL PE45448 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45448 REV 1.0 3
