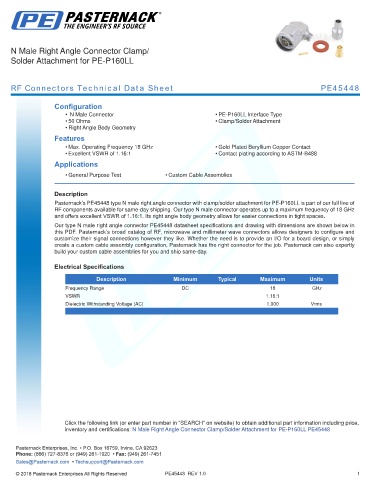

N Male Right Angle Connector Clamp/
Solder Attachment for PE-P160LL

RF Connectors Technical Data Sheet PE45448

Configuration
• N Male Connector • PE-P160LL Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 18 GHz • Gold Plated Beryllium Copper Contact
• Excellent VSWR of 1.16:1 • Contact plating according to ASTM-B488
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE45448 type N male right angle connector with clamp/solder attachment for PE-P160LL is part of our full line of
RF components available for same-day shipping. Our type N male connector operates up to a maximum frequency of 18 GHz
and offers excellent VSWR of 1.16:1. Its right angle body geometry allows for easier connections in tight spaces.
Our type N male right angle connector PE45448 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.16:1
Dielectric Withstanding Voltage (AC) 1,000 Vrms
.
.
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle Connector Clamp/Solder Attachment for PE-P160LL PE45448 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45448 REV 1.0 1
