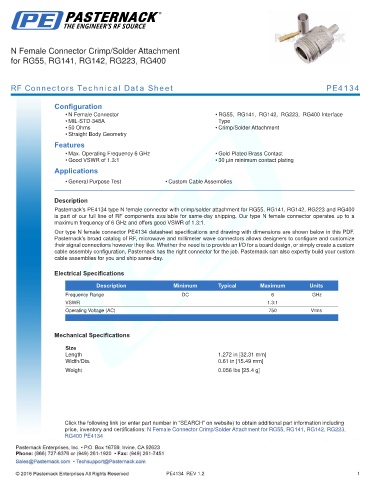

N Female Connector Crimp/Solder Attachment
for RG55, RG141, RG142, RG223, RG400

RF Connectors Technical Data Sheet PE4134

Configuration
• N Female Connector • RG55, RG141, RG142, RG223, RG400 Interface
• MIL-STD-348A Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 6 GHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4134 type N female connector with crimp/solder attachment for RG55, RG141, RG142, RG223 and RG400
is part of our full line of RF components available for same-day shipping. Our type N female connector operates up to a
maximum frequency of 6 GHz and offers good VSWR of 1.3:1.
Our type N female connector PE4134 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.3:1
Operating Voltage (AC) 750 Vrms
.

Mechanical Specifications

Size
Length 1.272 in [32.31 mm]
Width/Dia. 0.61 in [15.49 mm]
.
Weight 0.056 lbs [25.4 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Female Connector Crimp/Solder Attachment for RG55, RG141, RG142, RG223,
RG400 PE4134

PE4134 REV 1.2 1
