N Female Connector Crimp/Solder Attachment
for RG214, RG9, RG225, RG393

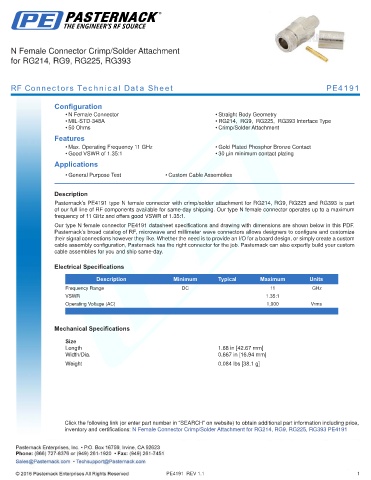

RF Connectors Technical Data Sheet PE4191

Configuration
• N Female Connector • Straight Body Geometry
• MIL-STD-348A • RG214, RG9, RG225, RG393 Interface Type
• 50 Ohms • Crimp/Solder Attachment
Features
• Max. Operating Frequency 11 GHz • Gold Plated Phosphor Bronze Contact
• Good VSWR of 1.35:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4191 type N female connector with crimp/solder attachment for RG214, RG9, RG225 and RG393 is part
of our full line of RF components available for same-day shipping. Our type N female connector operates up to a maximum
frequency of 11 GHz and offers good VSWR of 1.35:1.
Our type N female connector PE4191 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.35:1
Operating Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 1.68 in [42.67 mm]
Width/Dia. 0.667 in [16.94 mm]
.
Weight 0.084 lbs [38.1 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393 PE4191

PE4191 REV 1.1 1
