N Female Connector Clamp/Solder
Attachment for RG59, RG62, RG71

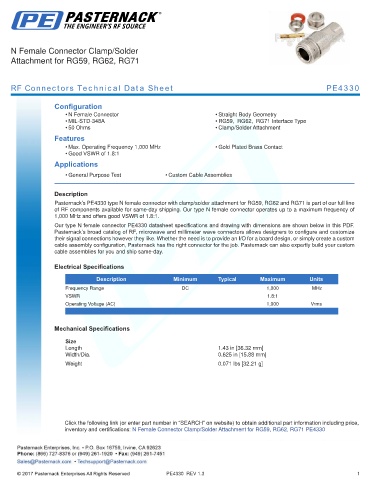

RF Connectors Technical Data Sheet PE4330

Configuration
• N Female Connector • Straight Body Geometry
• MIL-STD-348A • RG59, RG62, RG71 Interface Type
• 50 Ohms • Clamp/Solder Attachment
Features
• Max. Operating Frequency 1,000 MHz • Gold Plated Brass Contact
• Good VSWR of 1.8:1
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4330 type N female connector with clamp/solder attachment for RG59, RG62 and RG71 is part of our full line
of RF components available for same-day shipping. Our type N female connector operates up to a maximum frequency of
1,000 MHz and offers good VSWR of 1.8:1.
Our type N female connector PE4330 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.8:1
Operating Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 1.43 in [36.32 mm]
Width/Dia. 0.625 in [15.88 mm]
.
Weight 0.071 lbs [32.21 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Clamp/Solder Attachment for RG59, RG62, RG71 PE4330

PE4330 REV 1.3 1
