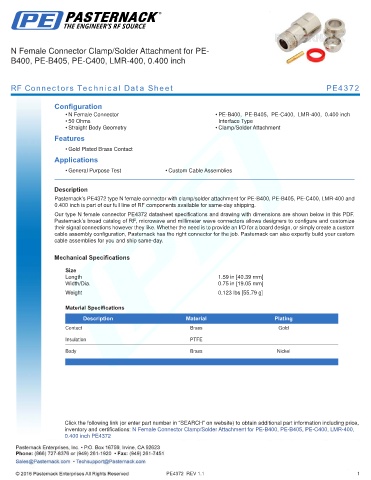

N Female Connector Clamp/Solder Attachment for PE-
B400, PE-B405, PE-C400, LMR-400, 0.400 inch

RF Connectors Technical Data Sheet PE4372

Configuration
• N Female Connector • PE-B400, PE-B405, PE-C400, LMR-400, 0.400 inch
• 50 Ohms Interface Type
• Straight Body Geometry • Clamp/Solder Attachment
Features
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4372 type N female connector with clamp/solder attachment for PE-B400, PE-B405, PE-C400, LMR-400 and
0.400 inch is part of our full line of RF components available for same-day shipping.
Our type N female connector PE4372 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.59 in [40.39 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.123 lbs [55.79 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation PTFE

Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Clamp/Solder Attachment for PE-B400, PE-B405, PE-C400, LMR-400,
0.400 inch PE4372

PE4372 REV 1.1 1
