N Female Connector Clamp/Solder Attachment For PE-C600

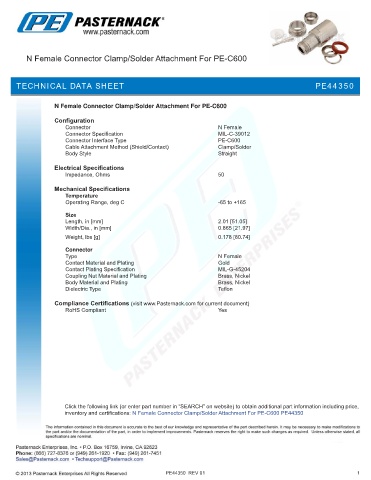

TECHNICAL DATA SHEET PE44350

N Female Connector Clamp/Solder Attachment For PE-C600

Configuration
Connector N Female
Connector Specification MIL-C-39012
Connector Interface Type PE-C600
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 2.01 [51.05]
Width/Dia., in [mm] 0.865 [21.97]
.
Weight, lbs [g] 0.178 [80.74]
Connector
Type N Female
Contact Material and Plating Gold
Contact Plating Specification MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Clamp/Solder Attachment For PE-C600 PE44350

PE44350 REV 01 1
