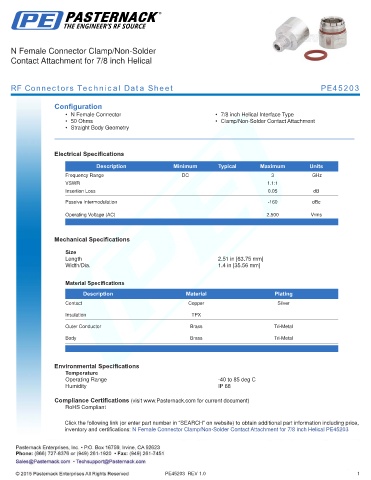

N Female Connector Clamp/Non-Solder
Contact Attachment for 7/8 inch Helical
RF Connectors Technical Data Sheet PE45203
Configuration
• N Female Connector • 7/8 inch Helical Interface Type
• 50 Ohms • Clamp/Non-Solder Contact Attachment
• Straight Body Geometry
.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.1:1
Insertion Loss 0.05 dB
Passive Intermodulation -160 dBc
Operating Voltage (AC) 2,500 Vrms
.
Mechanical Specifications
Size
Length 2.51 in [63.75 mm]
Width/Dia. 1.4 in [35.56 mm]
.
.
Material Specifications
Description Material Plating
Contact Copper Silver
Insulation TPX
Outer Conductor Brass Tri-Metal
Body Brass Tri-Metal
.
Environmental Specifications
Temperature
Operating Range -40 to 85 deg C
Humidity IP 68
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Clamp/Non-Solder Contact Attachment for 7/8 inch Helical PE45203
PE45203 REV 1.0 1
