N Female Connector Clamp/Non-Solder Contact
Attachment for 7/8 inch annular

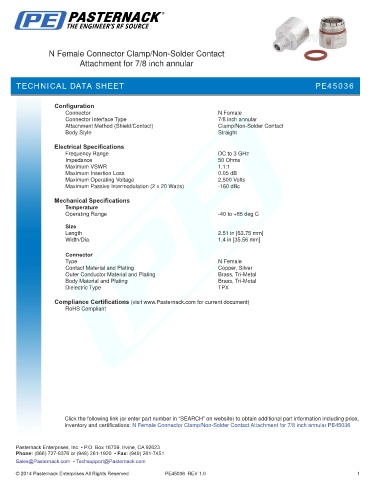

TECHNICAL DATA SHEET PE45036

Configuration
Connector N Female
Connector Interface Type 7/8 inch annular
Attachment Method (Shield/Contact) Clamp/Non-Solder Contact
Body Style Straight

Electrical Specifications
Frequency Range DC to 3 GHz
Impedance 50 Ohms
Maximum VSWR 1.1:1
Maximum Insertion Loss 0.05 dB
Maximum Operating Voltage 2,500 Volts
Maximum Passive Intermodulation (2 x 20 Watts) -160 dBc
Mechanical Specifications
Temperature
Operating Range -40 to +85 deg C

Size
Length 2.51 in [63.75 mm]
Width/Dia. 1.4 in [35.56 mm]
.
Connector
Type N Female
Contact Material and Plating Copper, Silver
Outer Conductor Material and Plating Brass, Tri-Metal
Body Material and Plating Brass, Tri-Metal
Dielectric Type TPX

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Clamp/Non-Solder Contact Attachment for 7/8 inch annular PE45036

PE45036 REV 1.0 1
