N Female Low PIM Connector Clamp/Non-Solder
Contact Attachment for PE-1/2FAC, 1/2 inch
Flexible, 1/2 inch Annular, IP67 Rated

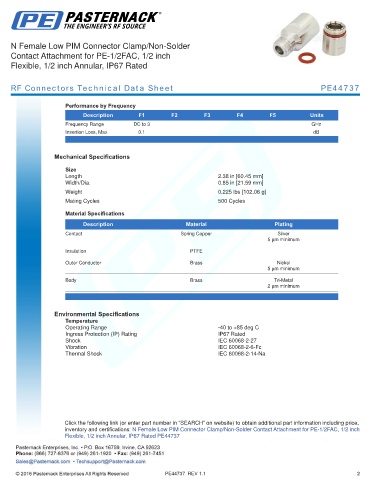

RF Connectors Technical Data Sheet PE44737

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 3 GHz
Insertion Loss, Max 0.1 dB
.

Mechanical Specifications
Size
Length 2.38 in [60.45 mm]
Width/Dia. 0.85 in [21.59 mm]
.
Weight 0.225 lbs [102.06 g]
.
Mating Cycles 500 Cycles
Material Specifications

Description Material Plating
Contact Spring Copper Silver
5 µm minimum
Insulation PTFE

Outer Conductor Brass Nickel
5 µm minimum
Body Brass Tri-Metal
2 µm minimum
.

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C
Ingress Protection (IP) Rating IP67 Rated
Shock IEC 60068-2-27
Vibration IEC 60068-2-6-Fc
Thermal Shock IEC 60068-2-14-Na

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Low PIM Connector Clamp/Non-Solder Contact Attachment for PE-1/2FAC, 1/2 inch
Flexible, 1/2 inch Annular, IP67 Rated PE44737

PE44737 REV 1.1 2
