N Female Low PIM Connector Clamp/Non-Solder Contact
Attachment For 1/2” Superflexible, PE-1/2SFHC

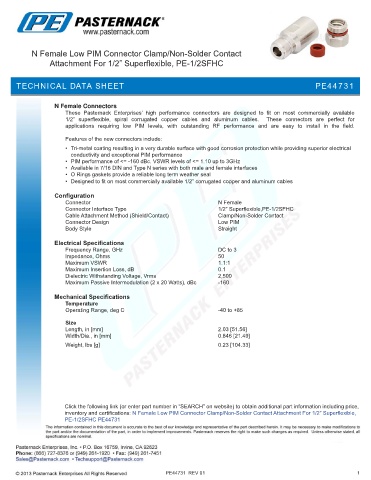

TECHNICAL DATA SHEET PE44731

N Female Connectors
These Pasternack Enterprises’ high performance connectors are designed to fit on most commercially available
1/2” superflexible, spiral corrugated copper cables and aluminum cables. These connectors are perfect for
applications requiring low PIM levels, with outstanding RF performance and are easy to install in the field.

Features of the new connectors include:
• Tri-metal coating resulting in a very durable surface with good corrosion protection while providing superior electrical
conductivity and exceptional PIM performance
• PIM performance of <= -160 dBc. VSWR levels of <= 1.10 up to 3GHz
• Available in 7/16 DIN and Type N series with both male and female interfaces
• O Rings gaskets provide a reliable long term weather seal
• Designed to fit on most commercially available 1/2” corrugated copper and aluminum cables

Configuration
Connector N Female
Connector Interface Type 1/2” Superflexible,PE-1/2SFHC
Cable Attachment Method (Shield/Contact) Clamp/Non-Solder Contact
Connector Design Low PIM
Body Style Straight

Electrical Specifications
Frequency Range, GHz DC to 3
Impedance, Ohms 50
Maximum VSWR 1.1:1
Maximum Insertion Loss, dB 0.1
Dielectric Withstanding Voltage, Vrms 2,500
Maximum Passive Intermodulation (2 x 20 Watts), dBc -160
Mechanical Specifications
Temperature
Operating Range, deg C -40 to +85

Size
Length, in [mm] 2.03 [51.56]
Width/Dia., in [mm] 0.846 [21.49]
.
Weight, lbs [g] 0.23 [104.33]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Low PIM Connector Clamp/Non-Solder Contact Attachment For 1/2” Superflexible,
PE-1/2SFHC PE44731

PE44731 REV 01 1
