N Female Low PIM Connector Clamp/Non-Solder Contact
Attachment for 1/4 inch Superflexible, PE-1/4SFHC, IP67 Rated

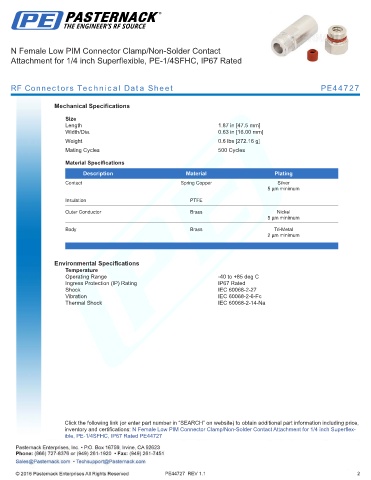

RF Connectors Technical Data Sheet PE44727

Mechanical Specifications

Size
Length 1.87 in [47.5 mm]
Width/Dia. 0.63 in [16.00 mm]
.
Weight 0.6 lbs [272.16 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Spring Copper Silver
5 µm minimum

Insulation PTFE
Outer Conductor Brass Nickel
5 µm minimum

Body Brass Tri-Metal
2 µm minimum
.

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C
Ingress Protection (IP) Rating IP67 Rated
Shock IEC 60068-2-27
Vibration IEC 60068-2-6-Fc
Thermal Shock IEC 60068-2-14-Na

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Low PIM Connector Clamp/Non-Solder Contact Attachment for 1/4 inch Superflex-
ible, PE-1/4SFHC, IP67 Rated PE44727
