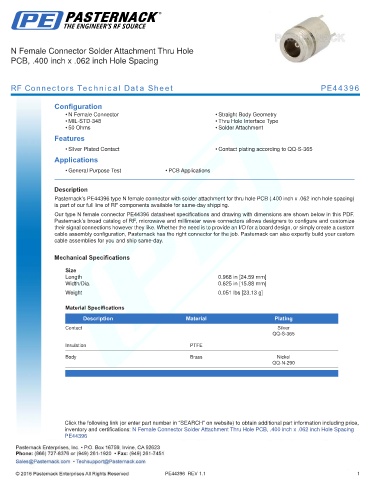

N Female Connector Solder Attachment Thru Hole
PCB, .400 inch x .062 inch Hole Spacing

RF Connectors Technical Data Sheet PE44396

Configuration
• N Female Connector • Straight Body Geometry
• MIL-STD-348 • Thru Hole Interface Type
• 50 Ohms • Solder Attachment
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • PCB Applications
.
Description
Pasternack’s PE44396 type N female connector with solder attachment for thru hole PCB (.400 inch x .062 inch hole spacing)
is part of our full line of RF components available for same-day shipping.
Our type N female connector PE44396 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.968 in [24.59 mm]
Width/Dia. 0.625 in [15.88 mm]
.
Weight 0.051 lbs [23.13 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE

Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Solder Attachment Thru Hole PCB, .400 inch x .062 inch Hole Spacing
PE44396

PE44396 REV 1.1 1
