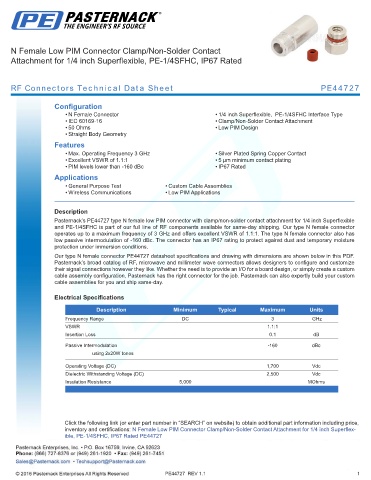

N Female Low PIM Connector Clamp/Non-Solder Contact
Attachment for 1/4 inch Superflexible, PE-1/4SFHC, IP67 Rated

RF Connectors Technical Data Sheet PE44727

Configuration
• N Female Connector • 1/4 inch Superflexible, PE-1/4SFHC Interface Type
• IEC 60169-16 • Clamp/Non-Solder Contact Attachment
• 50 Ohms • Low PIM Design
• Straight Body Geometry
Features
• Max. Operating Frequency 3 GHz • Silver Plated Spring Copper Contact
• Excellent VSWR of 1.1:1 • 5 µm minimum contact plating
• PIM levels lower than -160 dBc • IP67 Rated
Applications
• General Purpose Test • Custom Cable Assemblies
• Wireless Communications • Low PIM Applications
.
Description
Pasternack’s PE44727 type N female low PIM connector with clamp/non-solder contact attachment for 1/4 inch Superflexible
and PE-1/4SFHC is part of our full line of RF components available for same-day shipping. Our type N female connector
operates up to a maximum frequency of 3 GHz and offers excellent VSWR of 1.1:1. The type N female connector also has
low passive intermodulation of -160 dBc. The connector has an IP67 rating to protect against dust and temporary moisture
protection under immersion conditions.
Our type N female connector PE44727 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.1:1
Insertion Loss 0.1 dB
Passive Intermodulation -160 dBc
using 2x20W tones

Operating Voltage (DC) 1,700 Vdc
Dielectric Withstanding Voltage (DC) 2,500 Vdc
Insulation Resistance 5,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Low PIM Connector Clamp/Non-Solder Contact Attachment for 1/4 inch Superflex-
ible, PE-1/4SFHC, IP67 Rated PE44727
