N Female Low PIM Connector Clamp/Non-Solder Contact
Attachment For 1/2” Superflexible, PE-1/2SFHC

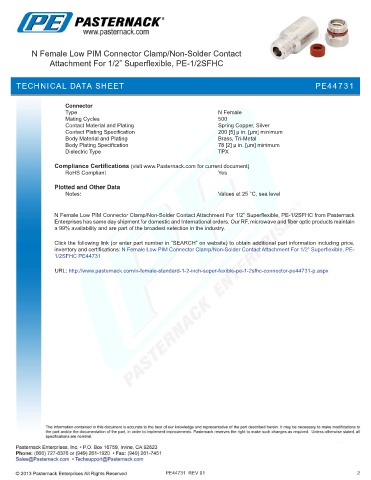

TECHNICAL DATA SHEET PE44731

Connector
Type N Female
Mating Cycles 500
Contact Material and Plating Spring Copper, Silver
Contact Plating Specification 200 [5] µ in. [µm] minimum
Body Material and Plating Brass, Tri-Metal
Body Plating Specification 78 [2] µ in. [µm] minimum
Dielectric Type TPX

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

N Female Low PIM Connector Clamp/Non-Solder Contact Attachment For 1/2” Superflexible, PE-1/2SFHC from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain
a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Low PIM Connector Clamp/Non-Solder Contact Attachment For 1/2” Superflexible, PE-
1/2SFHC PE44731

URL: http://www.pasternack.com/n-female-standard-1-2-inch-super-fexible-pe-1-2sfhc-connector-pe44731-p.aspx

PE44731 REV 01 2
