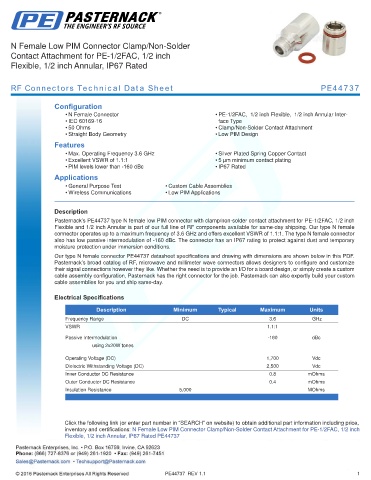

N Female Low PIM Connector Clamp/Non-Solder
Contact Attachment for PE-1/2FAC, 1/2 inch
Flexible, 1/2 inch Annular, IP67 Rated

RF Connectors Technical Data Sheet PE44737

Configuration
• N Female Connector • PE-1/2FAC, 1/2 inch Flexible, 1/2 inch Annular Inter-
• IEC 60169-16 face Type
• 50 Ohms • Clamp/Non-Solder Contact Attachment
• Straight Body Geometry • Low PIM Design
Features
• Max. Operating Frequency 3.6 GHz • Silver Plated Spring Copper Contact
• Excellent VSWR of 1.1:1 • 5 µm minimum contact plating
• PIM levels lower than -160 dBc • IP67 Rated
Applications
• General Purpose Test • Custom Cable Assemblies
• Wireless Communications • Low PIM Applications
.
Description
Pasternack’s PE44737 type N female low PIM connector with clamp/non-solder contact attachment for PE-1/2FAC, 1/2 inch
Flexible and 1/2 inch Annular is part of our full line of RF components available for same-day shipping. Our type N female
connector operates up to a maximum frequency of 3.6 GHz and offers excellent VSWR of 1.1:1. The type N female connector
also has low passive intermodulation of -160 dBc. The connector has an IP67 rating to protect against dust and temporary
moisture protection under immersion conditions.
Our type N female connector PE44737 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3.6 GHz
VSWR 1.1:1
Passive Intermodulation -160 dBc
using 2x20W tones

Operating Voltage (DC) 1,700 Vdc
Dielectric Withstanding Voltage (DC) 2,500 Vdc
Inner Conductor DC Resistance 0.8 mOhms
Outer Conductor DC Resistance 0.4 mOhms
Insulation Resistance 5,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Low PIM Connector Clamp/Non-Solder Contact Attachment for PE-1/2FAC, 1/2 inch
Flexible, 1/2 inch Annular, IP67 Rated PE44737

PE44737 REV 1.1 1
