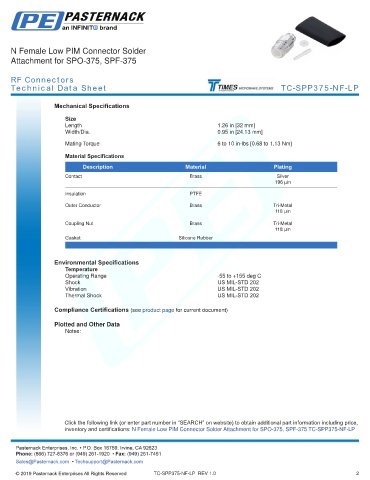

N Female Low PIM Connector Solder
Attachment for SPO-375, SPF-375
RF Connectors
Technical Data Sheet TC-SPP375-NF-LP
Mechanical Specifications
Size
Length 1.26 in [32 mm]
Width/Dia. 0.95 in [24.13 mm]
.
.
Mating Torque 6 to 10 in-lbs [0.68 to 1.13 Nm]
Material Specifications
Description Material Plating
Contact Brass Silver
196 µin
Insulation PTFE
Outer Conductor Brass Tri-Metal
118 µin
Coupling Nut Brass Tri-Metal
118 µin
Gasket Silicone Rubber
.
Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
Shock US MIL-STD 202
Vibration US MIL-STD 202
Thermal Shock US MIL-STD 202
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Low PIM Connector Solder Attachment for SPO-375, SPF-375 TC-SPP375-NF-LP -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
