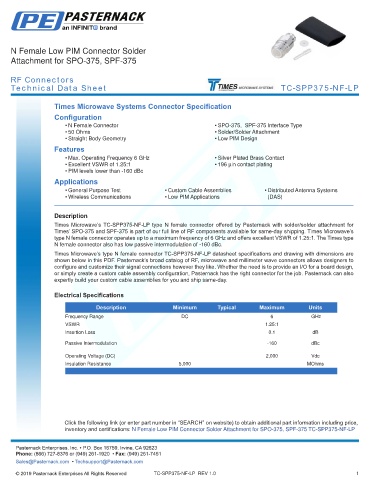

N Female Low PIM Connector Solder
Attachment for SPO-375, SPF-375

RF Connectors
Technical Data Sheet TC-SPP375-NF-LP

Times Microwave Systems Connector Specification
Configuration
• N Female Connector • SPO-375, SPF-375 Interface Type
• 50 Ohms • Solder/Solder Attachment
• Straight Body Geometry • Low PIM Design
Features
• Max. Operating Frequency 6 GHz • Silver Plated Brass Contact
• Excellent VSWR of 1.25:1 • 196 µin contact plating
• PIM levels lower than -160 dBc
Applications
• General Purpose Test • Custom Cable Assemblies • Distributed Antenna Systems
• Wireless Communications • Low PIM Applications (DAS)
.
Description
Times Microwave’s TC-SPP375-NF-LP type N female connector offered by Pasternack with solder/solder attachment for
Times’ SPO-375 and SPF-375 is part of our full line of RF components available for same-day shipping. Times Microwave’s
type N female connector operates up to a maximum frequency of 6 GHz and offers excellent VSWR of 1.25:1. The Times type
N female connector also has low passive intermodulation of -160 dBc.
Times Microwave’s type N female connector TC-SPP375-NF-LP datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.25:1
Insertion Loss 0.1 dB
Passive Intermodulation -160 dBc

Operating Voltage (DC) 2,000 Vdc
Insulation Resistance 5,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Low PIM Connector Solder Attachment for SPO-375, SPF-375 TC-SPP375-NF-LP -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

TC-SPP375-NF-LP REV 1.0 1
