N Female Bulkhead Connector Clamp/Solder Attachment For
PE-SR401AL, PE-SR401FL, RG401, .640 inch DD Hole

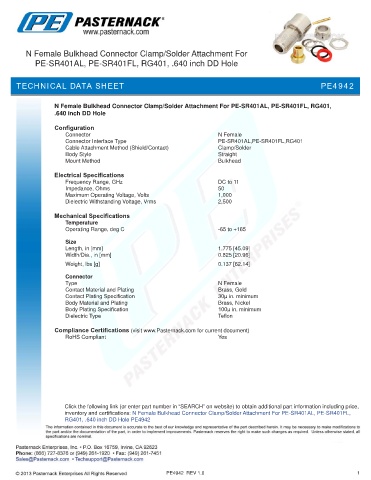

TECHNICAL DATA SHEET PE4942

N Female Bulkhead Connector Clamp/Solder Attachment For PE-SR401AL, PE-SR401FL, RG401,
.640 inch DD Hole

Configuration
Connector N Female
Connector Interface Type PE-SR401AL,PE-SR401FL,RG401
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Frequency Range, GHz DC to 11
Impedance, Ohms 50
Maximum Operating Voltage, Volts 1,000
Dielectric Withstanding Voltage, Vrms 2,500

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 1.775 [45.09]
Width/Dia., in [mm] 0.825 [20.96]
.
Weight, lbs [g] 0.137 [62.14]
Connector
Type N Female
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Connector Clamp/Solder Attachment For PE-SR401AL, PE-SR401FL,
RG401, .640 inch DD Hole PE4942

PE4942 REV 1.0 1
