N Female Bulkhead Mount Connector Clamp/
Solder Attachment for PE-P160LL

RF Connectors Technical Data Sheet PE45447

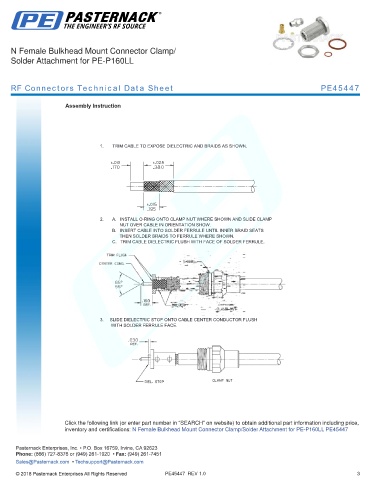

Assembly Instruction

1. TRIM CABLE TO EXPOSE DIELECTRIC AND BRAIDS AS SHOWN.

2. A. INSTALL O-RING ONTO CLAMP NUT WHERE SHOWN AND SLIDE CLAMP
NUT OVER CABLE IN ORIENTATION SHOW.
B. INSERT CABLE INTO SOLDER FERRULE UNTIL INNER BRAID SEATS
THEN SOLDER BRAIDS TO FERRULE WHERE SHOWN.
C. TRIM CABLE DIELECTRIC FLUSH WITH FACE OF SOLDER FERRULE.

3. SLIDE DIELECTRIC STOP ONTO CABLE CENTER CONDUCTOR FLUSH
WITH SOLDER FERRULE FACE.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Connector Clamp/Solder Attachment for PE-P160LL PE45447 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
