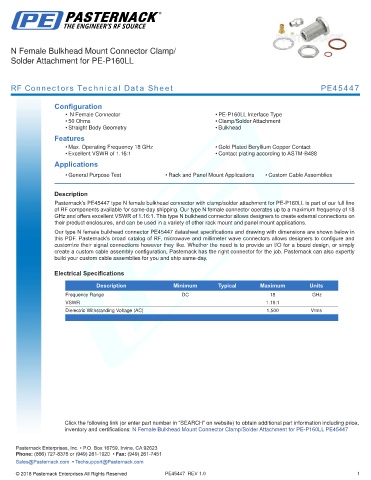

N Female Bulkhead Mount Connector Clamp/
Solder Attachment for PE-P160LL

RF Connectors Technical Data Sheet PE45447

Configuration
• N Female Connector • PE-P160LL Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 18 GHz • Gold Plated Beryllium Copper Contact
• Excellent VSWR of 1.16:1 • Contact plating according to ASTM-B488
Applications
• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE45447 type N female bulkhead connector with clamp/solder attachment for PE-P160LL is part of our full line
of RF components available for same-day shipping. Our type N female connector operates up to a maximum frequency of 18
GHz and offers excellent VSWR of 1.16:1. This type N bulkhead connector allows designers to create external connections on
their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our type N female bulkhead connector PE45447 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.16:1
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.
.
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Connector Clamp/Solder Attachment for PE-P160LL PE45447 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45447 REV 1.0 1
