N Female Bulkhead Mount Connector Clamp/Solder
Attachment for RG188-DS, RG316-DS, .640 inch DD Hole

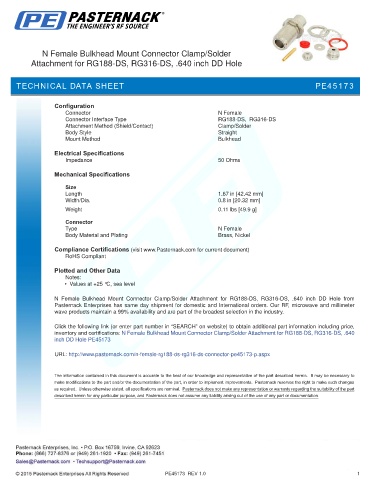

TECHNICAL DATA SHEET PE45173

Configuration
Connector N Female
Connector Interface Type RG188-DS, RG316-DS
Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance 50 Ohms

Mechanical Specifications

Size
Length 1.67 in [42.42 mm]
Width/Dia. 0.8 in [20.32 mm]
.
Weight 0.11 lbs [49.9 g]
Connector
Type N Female
Body Material and Plating Brass, Nickel

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Plotted and Other Data
Notes:
• Values at +25 °C, sea level

N Female Bulkhead Mount Connector Clamp/Solder Attachment for RG188-DS, RG316-DS, .640 inch DD Hole from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Connector Clamp/Solder Attachment for RG188-DS, RG316-DS, .640
inch DD Hole PE45173
