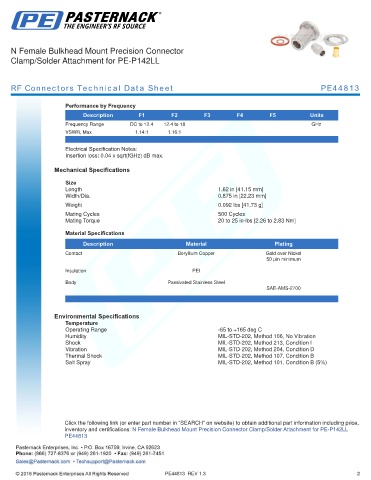

N Female Bulkhead Mount Precision Connector
Clamp/Solder Attachment for PE-P142LL

RF Connectors Technical Data Sheet PE44813

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 12.4 12.4 to 18 GHz
VSWR, Max 1.14:1 1.16:1
.
Electrical Specification Notes:
Insertion loss: 0.04 x sqrt(fGHz) dB max.

Mechanical Specifications

Size
Length 1.62 in [41.15 mm]
Width/Dia. 0.875 in [22.23 mm]
.
Weight 0.092 lbs [41.73 g]
.
Mating Cycles 500 Cycles
Mating Torque 20 to 25 in-lbs [2.26 to 2.83 Nm]
Material Specifications

Description Material Plating
Contact Beryllium Copper Gold over Nickel
50 µin minimum
Insulation PEI

Body Passivated Stainless Steel
SAE-AMS-2700
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Humidity MIL-STD-202, Method 106, No Vibration
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Salt Spray MIL-STD-202, Method 101, Condition B (5%)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Precision Connector Clamp/Solder Attachment for PE-P142LL
PE44813
