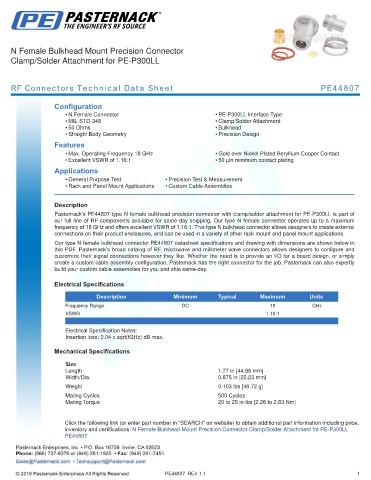

N Female Bulkhead Mount Precision Connector
Clamp/Solder Attachment for PE-P300LL

RF Connectors Technical Data Sheet PE44807

Configuration
• N Female Connector • PE-P300LL Interface Type
• MIL-STD-348 • Clamp/Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry • Precision Design
Features
• Max. Operating Frequency 18 GHz • Gold over Nickel Plated Beryllium Copper Contact
• Excellent VSWR of 1.16:1 • 50 µin minimum contact plating
Applications
• General Purpose Test • Precision Test & Measurement
• Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44807 type N female bulkhead precision connector with clamp/solder attachment for PE-P300LL is part of
our full line of RF components available for same-day shipping. Our type N female connector operates up to a maximum
frequency of 18 GHz and offers excellent VSWR of 1.16:1. This type N bulkhead connector allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our type N female bulkhead connector PE44807 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.16:1
.
Electrical Specification Notes:
Insertion loss: 0.04 x sqrt(fGHz) dB max.

Mechanical Specifications
Size
Length 1.77 in [44.96 mm]
Width/Dia. 0.875 in [22.23 mm]
.
Weight 0.103 lbs [46.72 g]
.
Mating Cycles 500 Cycles
Mating Torque 20 to 25 in-lbs [2.26 to 2.83 Nm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Precision Connector Clamp/Solder Attachment for PE-P300LL
PE44807

PE44807 REV 1.1 1
