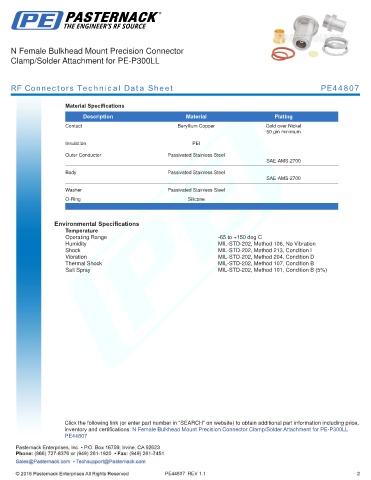

N Female Bulkhead Mount Precision Connector
Clamp/Solder Attachment for PE-P300LL
RF Connectors Technical Data Sheet PE44807
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold over Nickel
50 µin minimum
Insulation PEI
Outer Conductor Passivated Stainless Steel
SAE-AMS-2700
Body Passivated Stainless Steel
SAE-AMS-2700
Washer Passivated Stainless Steel
O-Ring Silicone
.
Environmental Specifications
Temperature
Operating Range -65 to +150 deg C
Humidity MIL-STD-202, Method 106, No Vibration
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Salt Spray MIL-STD-202, Method 101, Condition B (5%)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Precision Connector Clamp/Solder Attachment for PE-P300LL
PE44807
PE44807 REV 1.1 2
