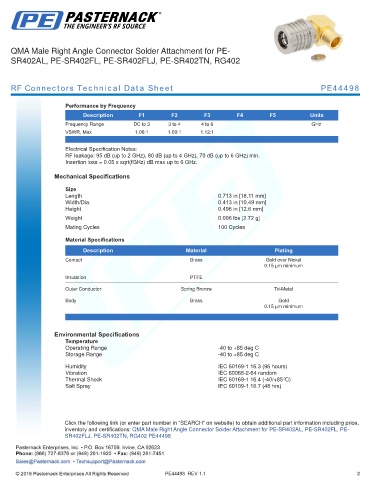

QMA Male Right Angle Connector Solder Attachment for PE-
SR402AL, PE-SR402FL, PE-SR402FLJ, PE-SR402TN, RG402

RF Connectors Technical Data Sheet PE44498

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 3 3 to 4 4 to 6 GHz
VSWR, Max 1.06:1 1.09:1 1.12:1
.
Electrical Specification Notes:
RF leakage: 95 dB (up to 2 GHz), 80 dB (up to 4 GHz), 70 dB (up to 6 GHz) min.
Insertion loss = 0.05 x sqrt(fGHz) dB max up to 6 GHz.

Mechanical Specifications
Size
Length 0.713 in [18.11 mm]
Width/Dia. 0.413 in [10.49 mm]
Height 0.496 in [12.6 mm]
.
Weight 0.006 lbs [2.72 g]
.
Mating Cycles 100 Cycles
Material Specifications
Description Material Plating
Contact Brass Gold over Nickel
0.15 µm minimum
Insulation PTFE

Outer Conductor Spring Bronze Tri-Metal
Body Brass Gold
0.15 µm minimum

.

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C
Storage Range -40 to +85 deg C

Humidity IEC 60169-1 16.3 (96 hours)
Vibration IEC 60068-2-64 random
Thermal Shock IEC 60169-1 16.4 (-40/+85°C)
Salt Spray IEC 60109-1 16.7 (48 hrs)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: QMA Male Right Angle Connector Solder Attachment for PE-SR402AL, PE-SR402FL, PE-
SR402FLJ, PE-SR402TN, RG402 PE44498
