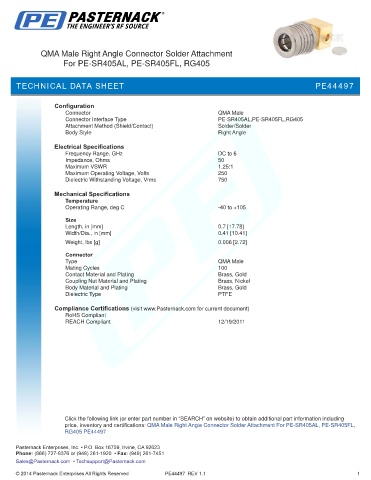

QMA Male Right Angle Connector Solder Attachment
For PE-SR405AL, PE-SR405FL, RG405

TECHNICAL DATA SHEET PE44497

Configuration
Connector QMA Male
Connector Interface Type PE-SR405AL,PE-SR405FL,RG405
Attachment Method (Shield/Contact) Solder/Solder
Body Style Right Angle

Electrical Specifications
Frequency Range, GHz DC to 6
Impedance, Ohms 50
Maximum VSWR 1.25:1
Maximum Operating Voltage, Volts 250
Dielectric Withstanding Voltage, Vrms 750

Mechanical Specifications
Temperature
Operating Range, deg C -40 to +105

Size
Length, in [mm] 0.7 [17.78]
Width/Dia., in [mm] 0.41 [10.41]
.
Weight, lbs [g] 0.006 [2.72]

Connector
Type QMA Male
Mating Cycles 100
Contact Material and Plating Brass, Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/19/2011

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: QMA Male Right Angle Connector Solder Attachment For PE-SR405AL, PE-SR405FL,
RG405 PE44497

PE44497 REV 1.1 1
