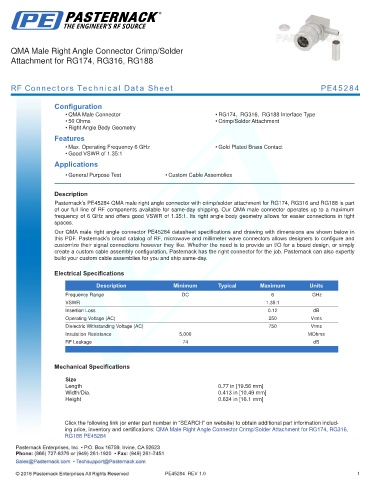

QMA Male Right Angle Connector Crimp/Solder
Attachment for RG174, RG316, RG188

RF Connectors Technical Data Sheet PE45284

Configuration
• QMA Male Connector • RG174, RG316, RG188 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 6 GHz • Gold Plated Brass Contact
• Good VSWR of 1.35:1
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE45284 QMA male right angle connector with crimp/solder attachment for RG174, RG316 and RG188 is part
of our full line of RF components available for same-day shipping. Our QMA male connector operates up to a maximum
frequency of 6 GHz and offers good VSWR of 1.35:1. Its right angle body geometry allows for easier connections in tight
spaces.
Our QMA male right angle connector PE45284 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.35:1
Insertion Loss 0.12 dB
Operating Voltage (AC) 250 Vrms
Dielectric Withstanding Voltage (AC) 750 Vrms
Insulation Resistance 5,000 MOhms
RF Leakage 74 dB
.

Mechanical Specifications

Size
Length 0.77 in [19.56 mm]
Width/Dia. 0.413 in [10.49 mm]
Height 0.634 in [16.1 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: QMA Male Right Angle Connector Crimp/Solder Attachment for RG174, RG316,
RG188 PE45284

PE45284 REV 1.0 1
