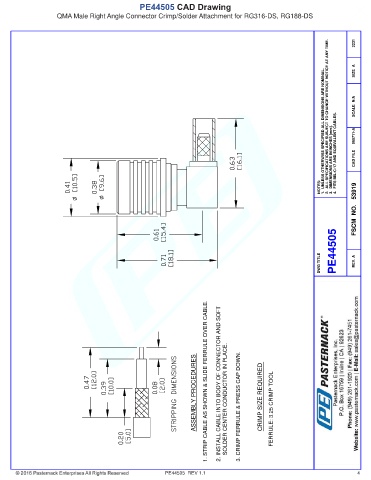

PE44505 CAD Drawing
QMA Male Right Angle Connector Crimp/Solder Attachment for RG316-DS, RG188-DS

2231
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 090711-A CAD FILE

NOTES:
FSCM NO. 53919

PE44505

DWG TITLE REV. A

ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN & SLIDE FERRULE OVER CABLE. 2. INSTALL CABLE INTO BODY OF CONNECTOR AND SOFT SOLDER CENTER CONDUCTOR IN PLACE. 3. CRIMP FERRULE & PRESS CAP DOWN. CRIMP SIZE REQUIRED FERRULE: 3.25 CRIMP TOOL

PE44505 REV 1.1 4
