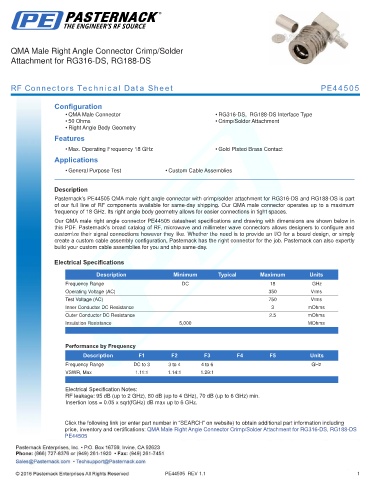

QMA Male Right Angle Connector Crimp/Solder
Attachment for RG316-DS, RG188-DS

RF Connectors Technical Data Sheet PE44505

Configuration
• QMA Male Connector • RG316-DS, RG188-DS Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 18 GHz • Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44505 QMA male right angle connector with crimp/solder attachment for RG316-DS and RG188-DS is part
of our full line of RF components available for same-day shipping. Our QMA male connector operates up to a maximum
frequency of 18 GHz. Its right angle body geometry allows for easier connections in tight spaces.
Our QMA male right angle connector PE44505 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
Operating Voltage (AC) 350 Vrms
Test Voltage (AC) 750 Vrms
Inner Conductor DC Resistance 3 mOhms
Outer Conductor DC Resistance 2.5 mOhms
Insulation Resistance 5,000 MOhms
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 3 3 to 4 4 to 6 GHz
VSWR, Max 1.11:1 1.14:1 1.29:1
.
Electrical Specification Notes:
RF leakage: 95 dB (up to 2 GHz), 80 dB (up to 4 GHz), 70 dB (up to 6 GHz) min.
Insertion loss = 0.05 x sqrt(fGHz) dB max up to 6 GHz.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: QMA Male Right Angle Connector Crimp/Solder Attachment for RG316-DS, RG188-DS
PE44505

PE44505 REV 1.1 1
