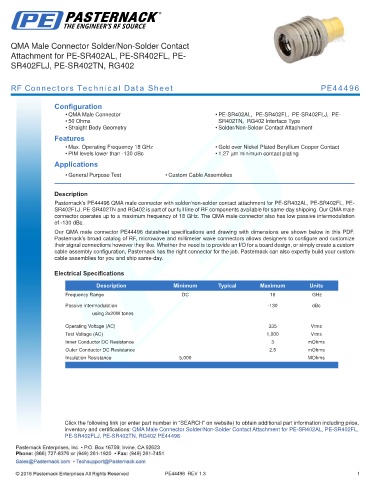

QMA Male Connector Solder/Non-Solder Contact
Attachment for PE-SR402AL, PE-SR402FL, PE-
SR402FLJ, PE-SR402TN, RG402

RF Connectors Technical Data Sheet PE44496

Configuration
• QMA Male Connector • PE-SR402AL, PE-SR402FL, PE-SR402FLJ, PE-
• 50 Ohms SR402TN, RG402 Interface Type
• Straight Body Geometry • Solder/Non-Solder Contact Attachment
Features
• Max. Operating Frequency 18 GHz • Gold over Nickel Plated Beryllium Copper Contact
• PIM levels lower than -130 dBc • 1.27 µm minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44496 QMA male connector with solder/non-solder contact attachment for PE-SR402AL, PE-SR402FL, PE-
SR402FLJ, PE-SR402TN and RG402 is part of our full line of RF components available for same-day shipping. Our QMA male
connector operates up to a maximum frequency of 18 GHz. The QMA male connector also has low passive intermodulation
of -130 dBc.
Our QMA male connector PE44496 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
Passive Intermodulation -130 dBc
using 2x20W tones

Operating Voltage (AC) 335 Vrms
Test Voltage (AC) 1,000 Vrms
Inner Conductor DC Resistance 3 mOhms
Outer Conductor DC Resistance 2.5 mOhms
Insulation Resistance 5,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: QMA Male Connector Solder/Non-Solder Contact Attachment for PE-SR402AL, PE-SR402FL,
PE-SR402FLJ, PE-SR402TN, RG402 PE44496

PE44496 REV 1.3 1
