QMA Male Connector Solder Attachment
for SPP-250-LLPL, Low PIM

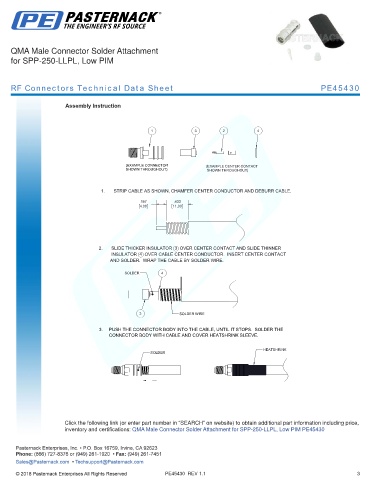

RF Connectors Technical Data Sheet PE45430

Assembly Instruction

1 3 2 4

(EXAMPLE CONNECTOR (EXAMPLE CENTER CONTACT
SHOWN THROUGHOUT) SHOWN THROUGHOUT)

1. STRIP CABLE AS SHOWN, CHAMFER CENTER CONDUCTOR AND DEBURR CABLE.
.157 .433
4.00 11.00

2. SLIDE THICKER INSULATOR 3 OVER CENTER CONTACT AND SLIDE THINNER
INSULATOR 4 OVER CABLE CENTER CONDUCTOR. INSERT CENTER CONTACT
AND SOLDER. WRAP THE CABLE BY SOLDER WIRE.

SOLDER 4

3 SOLDER WIRE

3. PUSH THE CONNECTOR BODY INTO THE CABLE, UNTIL IT STOPS. SOLDER THE
CONNECTOR BODY WITH CABLE AND COVER HEATSHRINK SLEEVE.

HEATSHRINK
SOLDER
