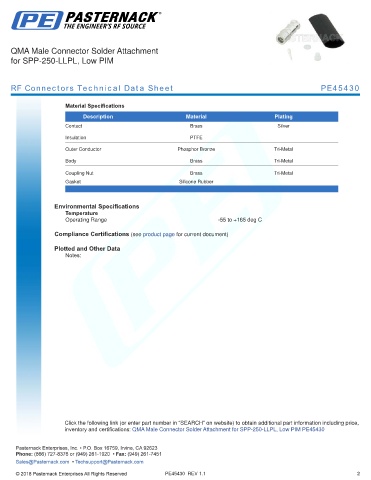

QMA Male Connector Solder Attachment
for SPP-250-LLPL, Low PIM

RF Connectors Technical Data Sheet PE45430

Material Specifications
Description Material Plating
Contact Brass Silver

Insulation PTFE
Outer Conductor Phosphor Bronze Tri-Metal
Body Brass Tri-Metal

Coupling Nut Brass Tri-Metal
Gasket Silicone Rubber
.

Environmental Specifications
Temperature
Operating Range -55 to +165 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: QMA Male Connector Solder Attachment for SPP-250-LLPL, Low PIM PE45430 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45430 REV 1.1 2
