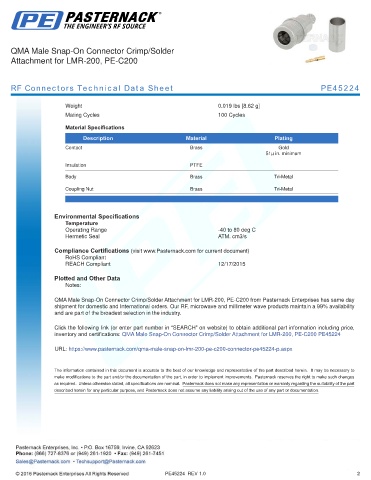

Page 2902 - 1.0/2.3 to SHV RF Connector Datasheets

QMA Male Snap-On Connector Crimp/Solder
Attachment for LMR-200, PE-C200

RF Connectors Technical Data Sheet PE45224

Weight 0.019 lbs [8.62 g]
.
Mating Cycles 100 Cycles

Material Specifications
Description Material Plating
Contact Brass Gold
51µ in. minimum
Insulation PTFE

Body Brass Tri-Metal
Coupling Nut Brass Tri-Metal
.

Environmental Specifications
Temperature
Operating Range -40 to 80 deg C
Hermetic Seal ATM. cm3/s

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2015
Plotted and Other Data
Notes:

QMA Male Snap-On Connector Crimp/Solder Attachment for LMR-200, PE-C200 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: QMA Male Snap-On Connector Crimp/Solder Attachment for LMR-200, PE-C200 PE45224

URL: https://www.pasternack.com/qma-male-snap-on-lmr-200-pe-c200-connector-pe45224-p.aspx

PE45224 REV 1.0 2
