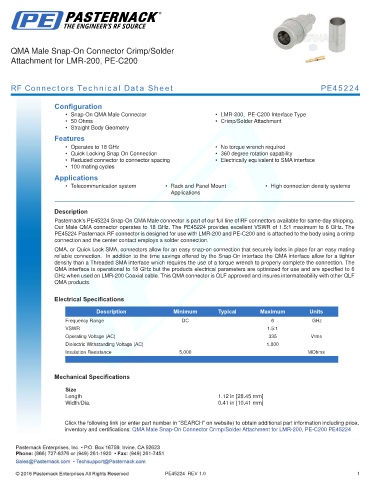

QMA Male Snap-On Connector Crimp/Solder
Attachment for LMR-200, PE-C200

RF Connectors Technical Data Sheet PE45224

Configuration
• Snap-On QMA Male Connector • LMR-200, PE-C200 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Operates to 18 GHz • No torque wrench required
• Quick Locking Snap On Connection • 360 degree rotation capability
• Reduced connector to connector spacing • Electrically equivalent to SMA interface
• 100 mating cycles
Applications
• Telecommunication system • Rack and Panel Mount • High connection density systems
Applications
.
Description
Pasternack’s PE45224 Snap-On QMA Male connector is part of our full line of RF connectors available for same-day shipping.
Our Male QMA connector operates to 18 GHz. The PE45224 provides excellent VSWR of 1.5:1 maximum to 6 GHz. The
PE45224 Pasternack RF connector is designed for use with LMR-200 and PE-C200 and is attached to the body using a crimp
connection and the center contact employs a solder connection.
QMA, or Quick Lock SMA, connectors allow for an easy snap-on connection that securely locks in place for an easy mating
reliable connection. In addition to the time savings offered by the Snap-On interface the QMA interface allow for a tighter
density than a Threaded SMA interface which requires the use of a torque wrench to properly complete the connection. The
QMA interface is operational to 18 GHz but the products electrical parameters are optimized for use and are specified to 6
GHz when used on LMR-200 Coaxial cable. This QMA connector is QLF approved and insures intermateability with other QLF
QMA products.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.5:1
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications

Size
Length 1.12 in [28.45 mm]
Width/Dia. 0.41 in [10.41 mm]
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: QMA Male Snap-On Connector Crimp/Solder Attachment for LMR-200, PE-C200 PE45224

PE45224 REV 1.0 1
