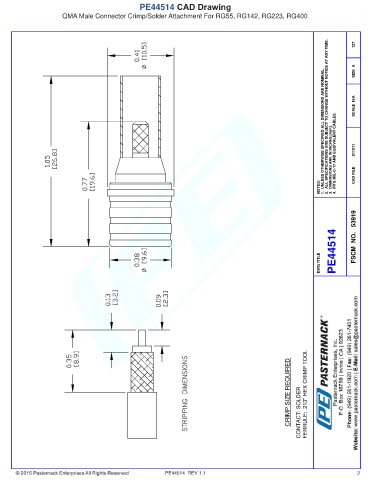

PE44514 CAD Drawing
QMA Male Connector Crimp/Solder Attachment For RG55, RG142, RG223, RG400

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 011011

NOTES: CAD FILE

PE44514 FSCM NO. 53919

DWG TITLE

CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .213" HEX CRIMP TOOL

PE44514 REV 1.1 2
