QMA Male Connector Solder Attachment For
PE-SR405AL, PE-SR405FL, RG405

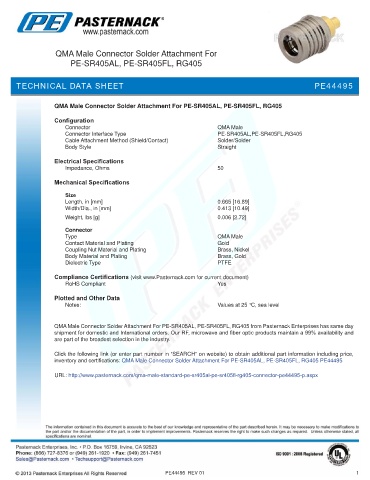

TECHNICAL DATA SHEET PE44495

QMA Male Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405

Configuration
Connector QMA Male
Connector Interface Type PE-SR405AL,PE-SR405FL,RG405
Cable Attachment Method (Shield/Contact) Solder/Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 0.665 [16.89]
Width/Dia., in [mm] 0.413 [10.49]
.
Weight, lbs [g] 0.006 [2.72]

Connector
Type QMA Male
Contact Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

QMA Male Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: QMA Male Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405 PE44495

URL: http://www.pasternack.com/qma-male-standard-pe-sr405al-pe-sr405fl-rg405-connector-pe44495-p.aspx

PE44495 REV 01 1
