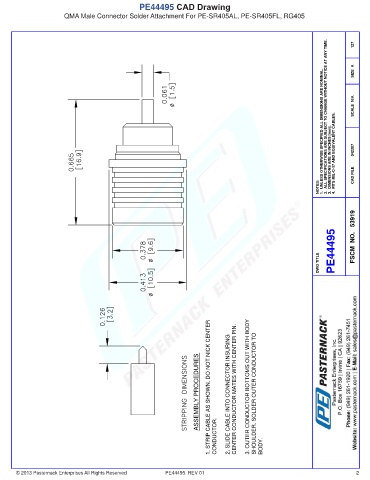

PE44495 CAD Drawing
QMA Male Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042307
NOTES: CAD FILE
PE44495 FSCM NO. 53919
DWG TITLE
ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN. DO NOT NICK CENTER 2. SLIDE CABLE INTO CONNECTOR INSURING CENTER CONDUCTOR MATES WITH CENTER PIN. 3. OUTER CONDUCTOR BOTTOMS OUT WITH BODY SHOULDER. SOLDER OUTER CONDUCTOR TO
CONDUCTOR. BODY.
© 2013 Pasternack Enterprises All Rights Reserved PE44495 REV 01 2
