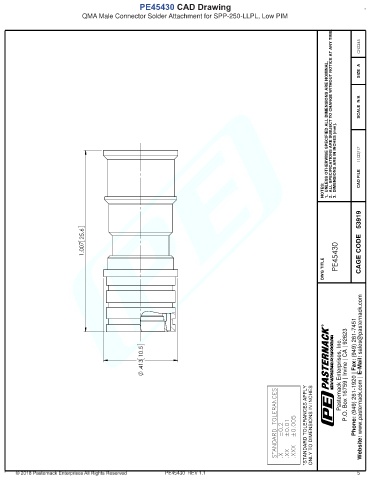

PE45430 CAD Drawing
QMA Male Connector Solder Attachment for SPP-250-LLPL, Low PIM

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOU T NOTICE AT ANY TIME.


1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 

NOTES: CAD FILE



  CAGE CODE 53919

DWG TITLE
