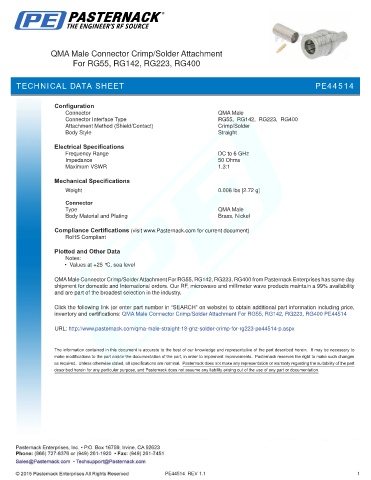

QMA Male Connector Crimp/Solder Attachment
For RG55, RG142, RG223, RG400

TECHNICAL DATA SHEET PE44514

Configuration
Connector QMA Male
Connector Interface Type RG55, RG142, RG223, RG400
Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight

Electrical Specifications
Frequency Range DC to 6 GHz
Impedance 50 Ohms
Maximum VSWR 1.3:1
Mechanical Specifications
.
Weight 0.006 lbs [2.72 g]
Connector
Type QMA Male
Body Material and Plating Brass, Nickel

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Plotted and Other Data
Notes:
• Values at +25 °C, sea level

QMA Male Connector Crimp/Solder Attachment For RG55, RG142, RG223, RG400 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: QMA Male Connector Crimp/Solder Attachment For RG55, RG142, RG223, RG400 PE44514

URL: http://www.pasternack.com/qma-male-straight-18-ghz-solder-crimp-for-rg223-pe44514-p.aspx

PE44514 REV 1.1 1
