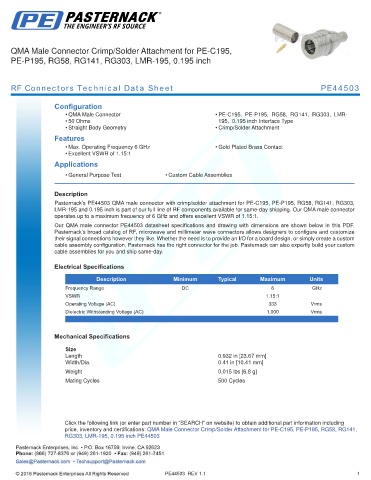

QMA Male Connector Crimp/Solder Attachment for PE-C195,
PE-P195, RG58, RG141, RG303, LMR-195, 0.195 inch

RF Connectors Technical Data Sheet PE44503

Configuration
• QMA Male Connector • PE-C195, PE-P195, RG58, RG141, RG303, LMR-
• 50 Ohms 195, 0.195 inch Interface Type
• Straight Body Geometry • Crimp/Solder Attachment
Features
• Max. Operating Frequency 6 GHz • Gold Plated Brass Contact
• Excellent VSWR of 1.15:1
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44503 QMA male connector with crimp/solder attachment for PE-C195, PE-P195, RG58, RG141, RG303,
LMR-195 and 0.195 inch is part of our full line of RF components available for same-day shipping. Our QMA male connector
operates up to a maximum frequency of 6 GHz and offers excellent VSWR of 1.15:1.
Our QMA male connector PE44503 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.15:1
Operating Voltage (AC) 333 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 0.932 in [23.67 mm]
Width/Dia. 0.41 in [10.41 mm]
.
Weight 0.015 lbs [6.8 g]
.
Mating Cycles 500 Cycles

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: QMA Male Connector Crimp/Solder Attachment for PE-C195, PE-P195, RG58, RG141,
RG303, LMR-195, 0.195 inch PE44503

PE44503 REV 1.1 1
