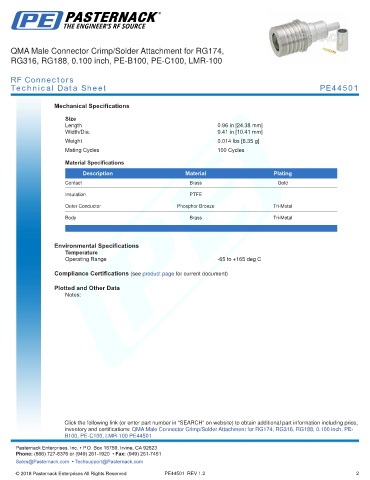

QMA Male Connector Crimp/Solder Attachment for RG174,
RG316, RG188, 0.100 inch, PE-B100, PE-C100, LMR-100
RF Connectors
Technical Data Sheet PE44501
Mechanical Specifications
Size
Length 0.96 in [24.38 mm]
Width/Dia. 0.41 in [10.41 mm]
.
Weight 0.014 lbs [6.35 g]
.
Mating Cycles 100 Cycles
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation PTFE
Outer Conductor Phosphor Bronze Tri-Metal
Body Brass Tri-Metal
.
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: QMA Male Connector Crimp/Solder Attachment for RG174, RG316, RG188, 0.100 inch, PE- -
B100, PE-C100, LMR-100 PE44501 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE44501 REV 1.2 2
