NMO Mount Connector Crimp/Solder
Attachment for RG58, LMR-195

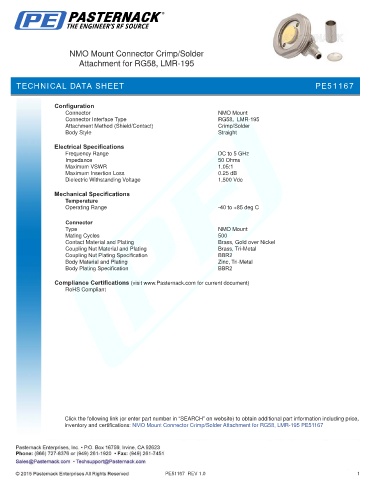

TECHNICAL DATA SHEET PE51167

Configuration
Connector NMO Mount
Connector Interface Type RG58, LMR-195
Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight

Electrical Specifications
Frequency Range DC to 5 GHz
Impedance 50 Ohms
Maximum VSWR 1.05:1
Maximum Insertion Loss 0.25 dB
Dielectric Withstanding Voltage 1,500 Vdc

Mechanical Specifications
Temperature
Operating Range -40 to +85 deg C
.
Connector
Type NMO Mount
Mating Cycles 500
Contact Material and Plating Brass, Gold over Nickel
Coupling Nut Material and Plating Brass, Tri-Metal
Coupling Nut Plating Specification BBR2
Body Material and Plating Zinc, Tri-Metal
Body Plating Specification BBR2

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: NMO Mount Connector Crimp/Solder Attachment for RG58, LMR-195 PE51167
